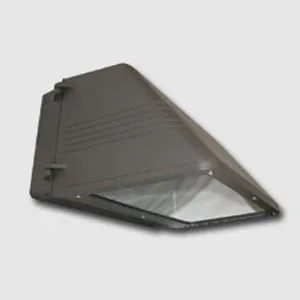

Techlight MWPF Medium Forward Throw Cutoff Wall Pack
Construction
Constructed with a full cutoff die cast aluminum housing. A tempered clear glass lens protects the optical system. Gasketed side hinge door for a weatherproof seal. Stainless steel hardware.
Finish
A Super Durable Polyester powder coat finish is electrostatically applied. Standard colors available: Black, Bronze, White, OD Green, US Green. Custom colors available upon request.
Optical System
Made for medium mounting heights ranging from 12 to 18. Two piece pinged aluminum reflector. Meets Dark Sky requirements for full cutoff fixtures. Premium forward throw reflector design for maximum light coverage.
Electrical System
Provided with a medium base 4KV pulse rated socket. Fixtures are available with with up to 175W Metal Halide or 150W High Pressure Sodium, and 32W-42W Fluorescent light sources. Wall Packs come with an option of Multi-Tap (120V, 208V, 240V, 277V), 480V high power factor ballasts, 120V NPF ballasts, or 120V Fluorescent ballasts depending on the light source and wattage chosen.
Mounting
Built in template for mounting to electrical boxes. Threaded 1/2" NPT knockouts provided on side and rear of fixture.
Note: High Pressure Sodium lamps are steadily being discontinued and becoming less common. Please consult the factory for availability of High Pressure Sodium models.
