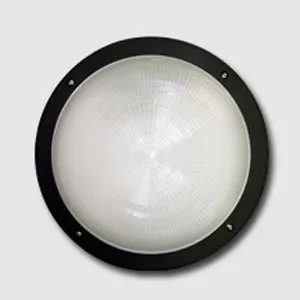

Techlight RWP Round Wall Pack
Construction
Constructed with a die cast aluminum housings. Tempered clear or frosted glass lens protect the optical system. Gasketed doors for a weatherproof seal. Stainless steel hardware.
Finish
A Super Durable Polyester powder coat finish is electrostatically applied. Standard colors available: Black, Bronze, White, OD Green, US Green. Custom colors available upon request.
Optical System
Made for low to medium range mounting heights. A horizontal or vertical reflector is available. A half cutoff frame is available to reduce uplight.
Electrical System
Provided with a medium base 4KV pulse rated socket for HID models. Fixtures are available with with up to 175W Metal Halide, 100W High Pressure Sodium, or 42W Fluorescent light sources. Wall Packs come with an option of Multi-Tap (120V, 208V, 240V, 277V),480V high power factor HID ballasts, or a 120V fluorescent ballast.
Mounting
Built in template for mounting to electrical box. The fixture can be surface mounted, or recessed using an optional trim ring.
Note: High Pressure Sodium lamps are steadily being discontinued and becoming less common. Please consult the factory for availability of High Pressure Sodium models.
